Magnetic Field Sensors
Due to their extremely thin and unconventional mechanical properties, our flexible and printed sensors can be applied not only to various flat but also curved objects. Our technology enables new fields of applications of magnetic field sensors and the realization of printed magnetic field sensors.
Flexible magnetic field sensors
- flexible sensors are on polymeric substrates with a thickness from 1 μm to 100 μm
- sensors can be processed on a sample area up to 12" wafer size
- customized sensor layout
- sensors mechanically bendable below 1 mm bending radii
- stable electrical properties upon mechanical deformations
More information about: Flexible magnetic field sensors

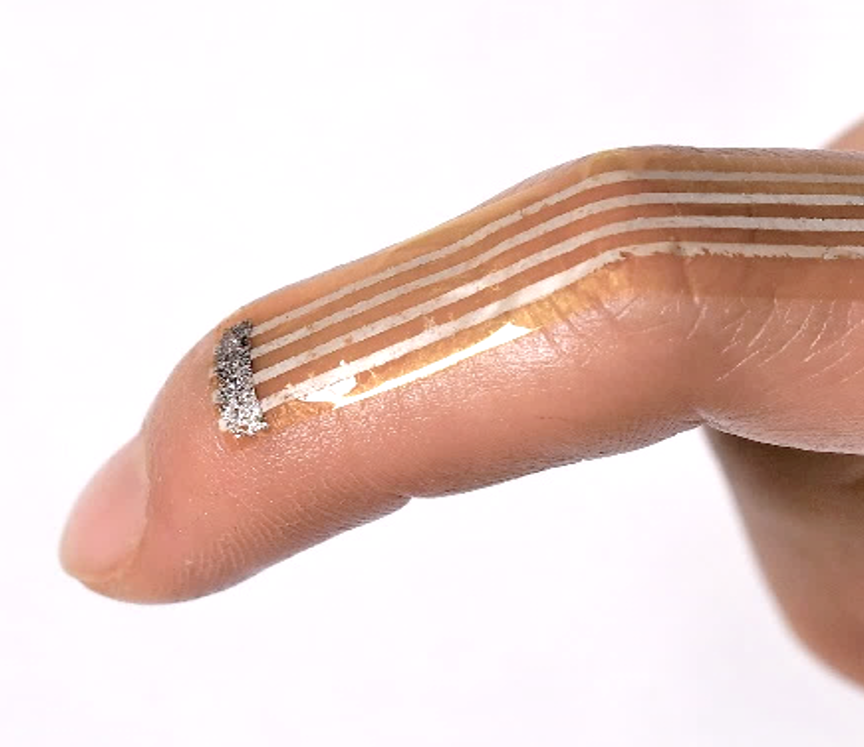

Magnetosensitive powder for printable magnetic field sensors
- different rigid and flexible substrates (paper, ceramic, silicon, textile, polymers)
- substrate thickness from 6 μm
- tunable sensitivity to magnetic field in the range from 0.5 mT to 200 mT
- temperature sensor stability up to 90 °C
- sensors mechanically bendable below 1 mm bending radii
More information about: Printable magnetic field sensors
